TagSense offers several OEM products for sale, as well as reference designs available for licensing.
For ordering instructions, please click here.
|
|
| |
|
|
| |
| |
| ZR-USB
|
| |
DESCRIPTION:
- Compact Active Tag Reader
- IEEE 802.15.4 protocol
- (same underlying protocol as Zigbee)
- Does not interfere with Wi-Fi networks
- Low power, spread spectrum, high security
- Single USB cable for power and data
- 50mm X 102 mm (2 in X 4 in)
- Free space Read range = 50-70 meters (150-210 feet)
|
|
|
Download data sheet
|
|
Request price list
|
|
|
| |

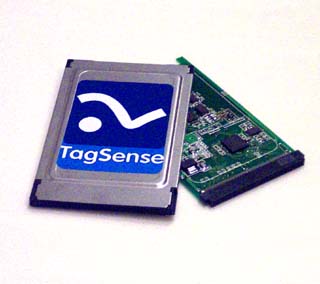

| ZR-PCMCIA
|
| |
DESCRIPTION:
- Active Tag Reader
- IEEE 802.15.4 protocol
- Does not interfere with Wi-Fi networks
- Standard PCMCIA Type II card
- Designed for PDAs/Handhelds
- Integrated antenna
- Free space Read range = 40-50 meters (120-150 feet)
|
|
|
Download data sheet
|
|
Request price list
|
|
|
| |

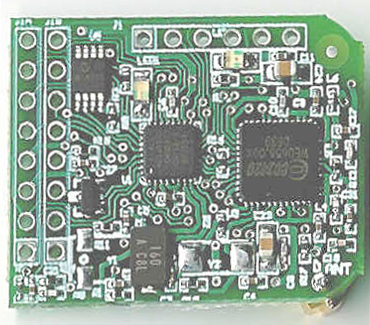

| ZR-232
|
| |
DESCRIPTION:
- Active Tag Reader
- IEEE 802.15.4 protocol
- Does not interfere with Wi-Fi networks
- Embedded Active RFID Reader Module
- Designed as plug-in module with serial communication
- Integrated antenna or connector for external antenna
- Free space Read range = 50-60 meters (120-150 feet)
|
|
|
Download data sheet
|
|
Request price list
|
|
|
| |
|
| |
|
ACTIVE RFID READER and Wi-Fi HUB
|
|
| |
| ZR-HUB
|
| |
DESCRIPTION:
- Wi-Fi Enabled Active Tag Reader
- IEEE 802.11 and 802.15.4 protocol
- Acts as data hub and link to Wi-Fi network
- Also contains direct Ethernet jack
- Programmable integrated processor provides RFID filtering and data processing
- Supports 2 external 50 Ohm external antennas:
- one for Wi-Fi and one for RFID
- Free space Read range = 60-80 meters (180-210 feet)
- Hard Metal Case for Industrial Applications
|
|
|
Download data sheet
|
|
Request price list
|
|
|
| |
|
| |
|
|
| |
| |

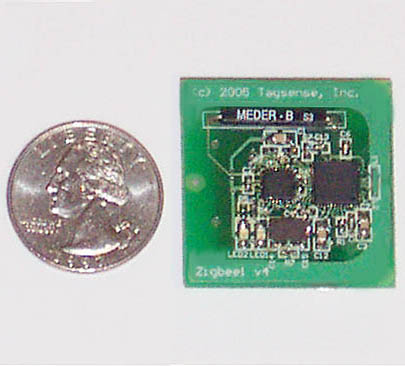

| ZT-10
|
| |
DESCRIPTION:
- Miniature RFID Tag with Sensor Input
- Supports IEEE 802.15.4 protocol
- Low-power, spread spectrum, high security
- Does not interfere with Wi-Fi networks
- Support for 8 analog sensor inputs and 1 digital sensor input
- Programmable transmission interval
- 720 BYTES User Memory
- Long battery life:
- 35 thousand data transmissions using low-cost CR2032 coin cell battery
- (approx 1 year at 15 min Transmission interval)
- Free space Read range = 40-60 meters (120-180 feet)
|
|
|
Download data sheet
|
|
Request price list
|
|
|
| |
| ZT-50 Data Logger
|
| |
DESCRIPTION:
- Miniature RFID Tag with Sensor Input and Data Logger Memory
- Contains onboard Real-Time clock
- User programmable data-sampling interval
- up to 8 time-scheduled program modes
- Default memory contains 8K Bytes sensor data memory (can be increased as custom order)
- Supports IEEE 802.15.4 protocol
- Low-power, spread spectrum, high security
- Does not interfere with Wi-Fi networks
- Support for 8 analog sensor inputs and 1 digital sensor input
- Programmable transmission interval
- 720 BYTES User Memory
- Long battery life:
- 35 thousand data transmissions using low-cost CR2032 coin cell battery
- Battery life depends on sensor choice and sensor power consumption
- (approx 1 year at 15 min Transmission interval)
- Free space Read range = 40-60 meters (120-180 feet) depending on reader antenna
|
|
|
Download data sheet
|
|
Request price list
|
|
|
| |

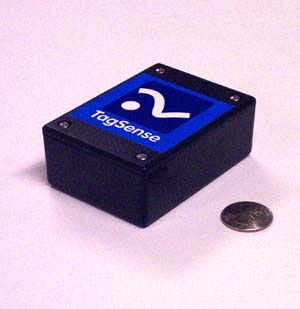

| ZT-100
|
| |
DESCRIPTION:
- Active RFID Tag
- Designed for pallets and large assets
- Supports IEEE 802.15.4 protocol
- Low-power, spread spectrum, high security
- Does not interfere with Wi-Fi networks
- Support for 1 analog sensor input and 1 digital sensor input
- Programmable transmission interval
- Sleep function to preserve battery
- Long battery life:
- 300 thousand data transmissions using two low-cost AA alkaline batteries
- (8-10 years at 15 min TX interval)
- Integrated PCB antenna
- Free space Read range = 50-70 meters (150-210 feet)
|
|
|
Download data sheet
|
|
Request price list
|
|
|
| |
|
| |
|
| |
|
|
| |

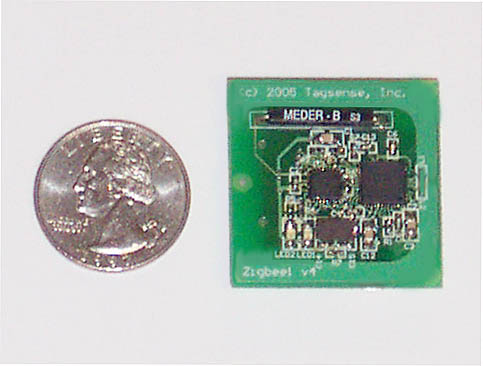

| ZT-LINK
|
| |
DESCRIPTION:
- General purpose wireless link
- Supports IEEE 802.15.4 protocol
- Low-power, spread spectrum, high security
- Does not interfere with Wi-Fi networks
- Designed to be used as a radio module attached to a host device
- Easy-to-use flow-control data packet protocol
- Same form factor as ZT-10
- Power = 3V at 0.5 mA
- Free space Read range = 50-60 meters (150-180 feet)
|
|
|
Download data sheet
|
|
Request price list
|
|
|
|
| |
|
|
|
|
Tagsense accepts multiple forms of payment, including credit cards, check, purchase order or PayPal. For ordering and payment instructions, click here.
|
|
For more information, please contact us directly:
|
